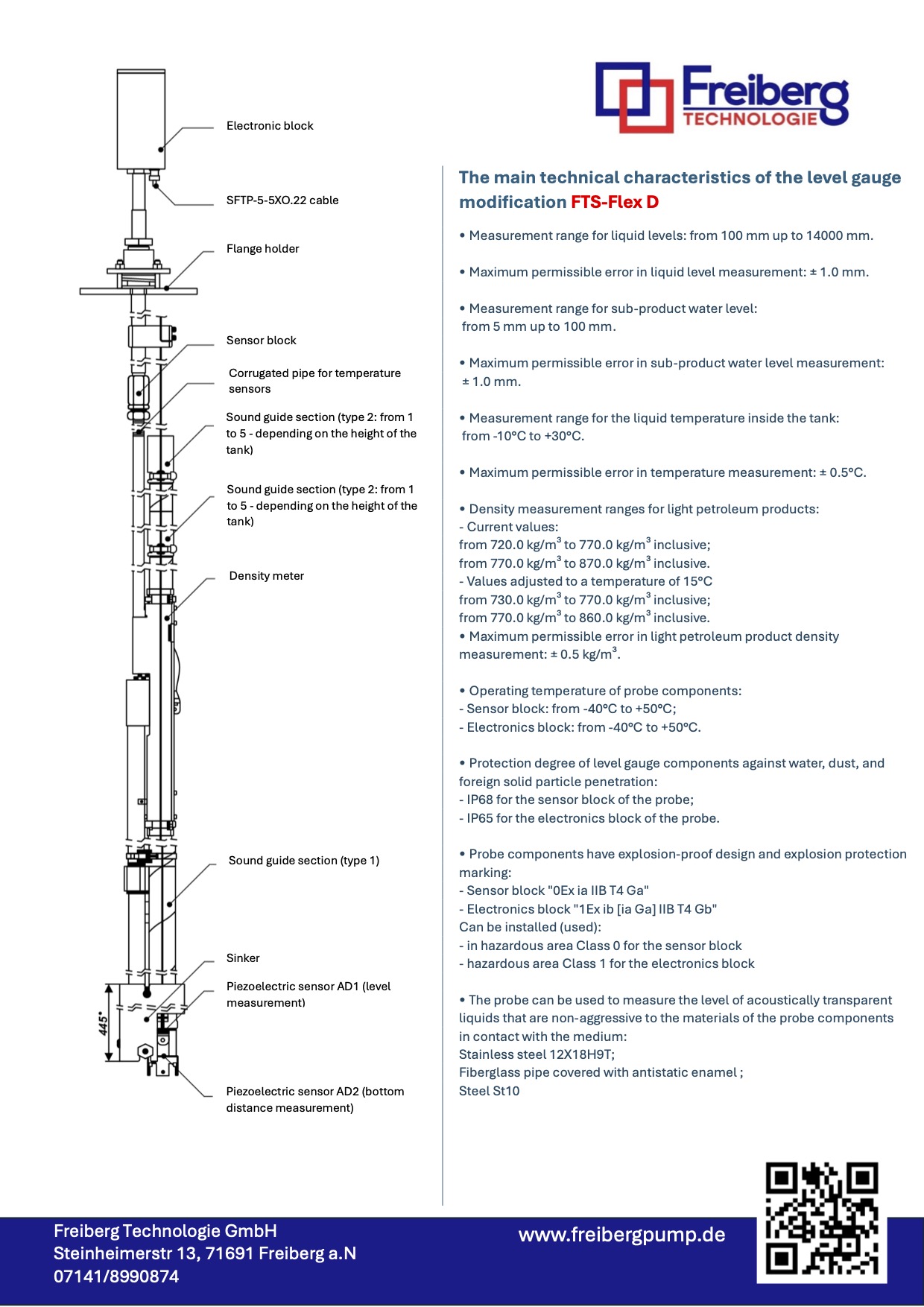

The SONAR-410 FTS-Flex D is a probe specially designed for vertical tanks (VTS) and booms.
When measuring the liquid level, the principle is used, which is based on pulsed ultrasonic echolocation. The ultrasonic probe is based on a block of sensors made of stainless corrugated tube with two piezo sensors (level measurement and distance measurement to the bottom) and a set of sound guide modules (2 m long – up to 5 inclusive), providing measurement of the liquid level in a tank up to 12 m. The special design allows the umbrella to be bent in any direction, which allows it to be compactly packed to reduce transportation costs. The probe has a very simple design for installation. The density measurement option is also included in this package. The density of the liquid is measured by a density meter mounted on a sound device.
✓ High-precision probe, with the possibility of using a non-contact method of measuring reservoirs.
✓ The absence of high requirements for wear resistance and structural strength of the equipment during the implementation of the method.
✓ The results of measurements and calculations are displayed on the monitor of the operator of the level gauge and transmitted to the automated control system of the object.
✓ Simplicity of the design of the converters and the way they are installed in/on tanks, as a result – ease of maintenance and simplified service support regulations, no need for expensive spare parts.
✓ Comes complete with a density meter.
