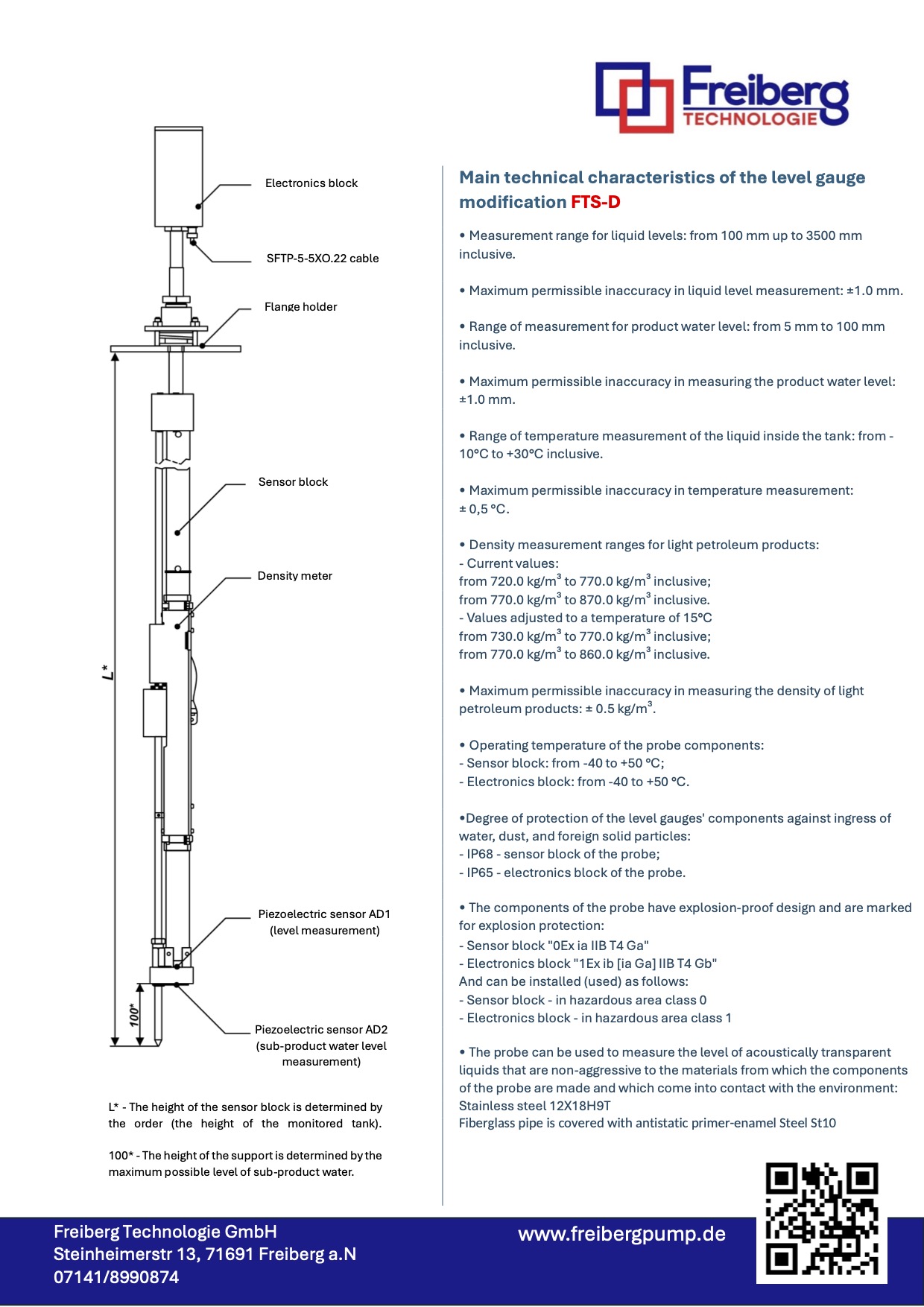

The SONAR-410 FTS-D is a probe specially designed for horizontal tanks (HTS) and consoles.
When measuring the liquid level, the principle is used, which is based on pulsed ultrasonic echolocation. The ultrasonic probe is based on a sensor unit with two piezo sensors (level measurement and measurement of the level of the supply water) and a sound guide that provides measurement of the liquid level in a tank up to 3.5 m. The density measurement option is also included in this package. The density of the liquid is measured by a density meter mounted on a sound device.
✓ High-precision probe, with the possibility of using a non-contact method of measuring reservoirs.
✓ The absence of high requirements for wear resistance and structural strength of the equipment during the implementation of the method.
✓ The results of measurements and calculations are displayed on the monitor of the operator of the level gauge and transmitted to the automated control system of the object.
✓ Simplicity of the design of the converters and the way they are installed in/on tanks, as a result – ease of maintenance and simplified service support regulations, no need for expensive spare parts.
✓ Comes complete with a density meter.
